Diagnostic Lenses

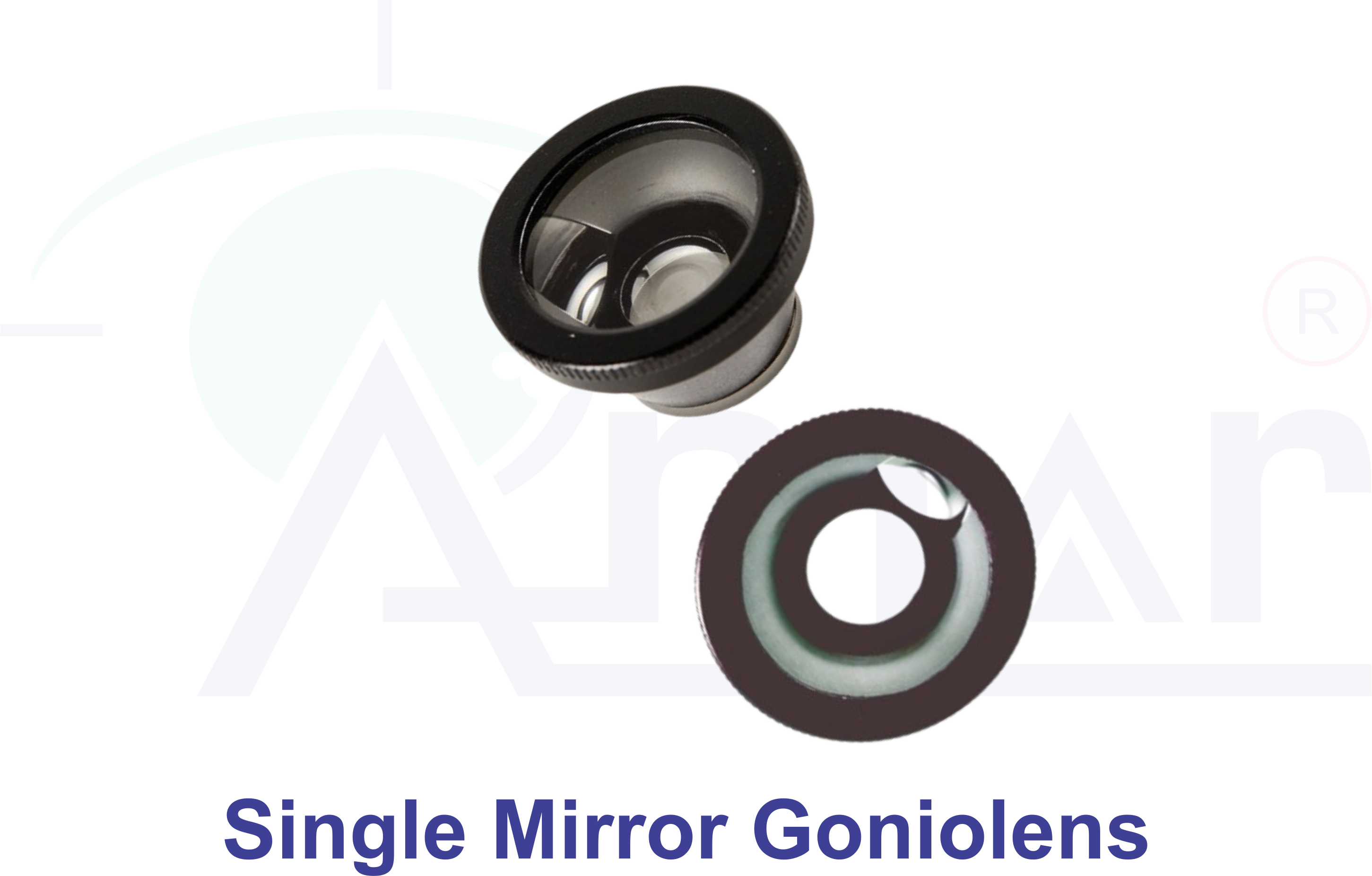

Single Mirror Goniolens
Used to view the anterior chamber angle and centralretina. Tiny size,very convenient in handling. Mirrorangledat62°.Whilerotating360°,it makes clear view of anterior chamber angle. Very useful in diagnostics.Made in glass,Contact medium required.
| REF | Description | Mirror angle | Qty.per Pack |
|---|---|---|---|
| AI/DL/01 | SINGLE MIRROR GONIOLENS | 62° | 1Nos. |

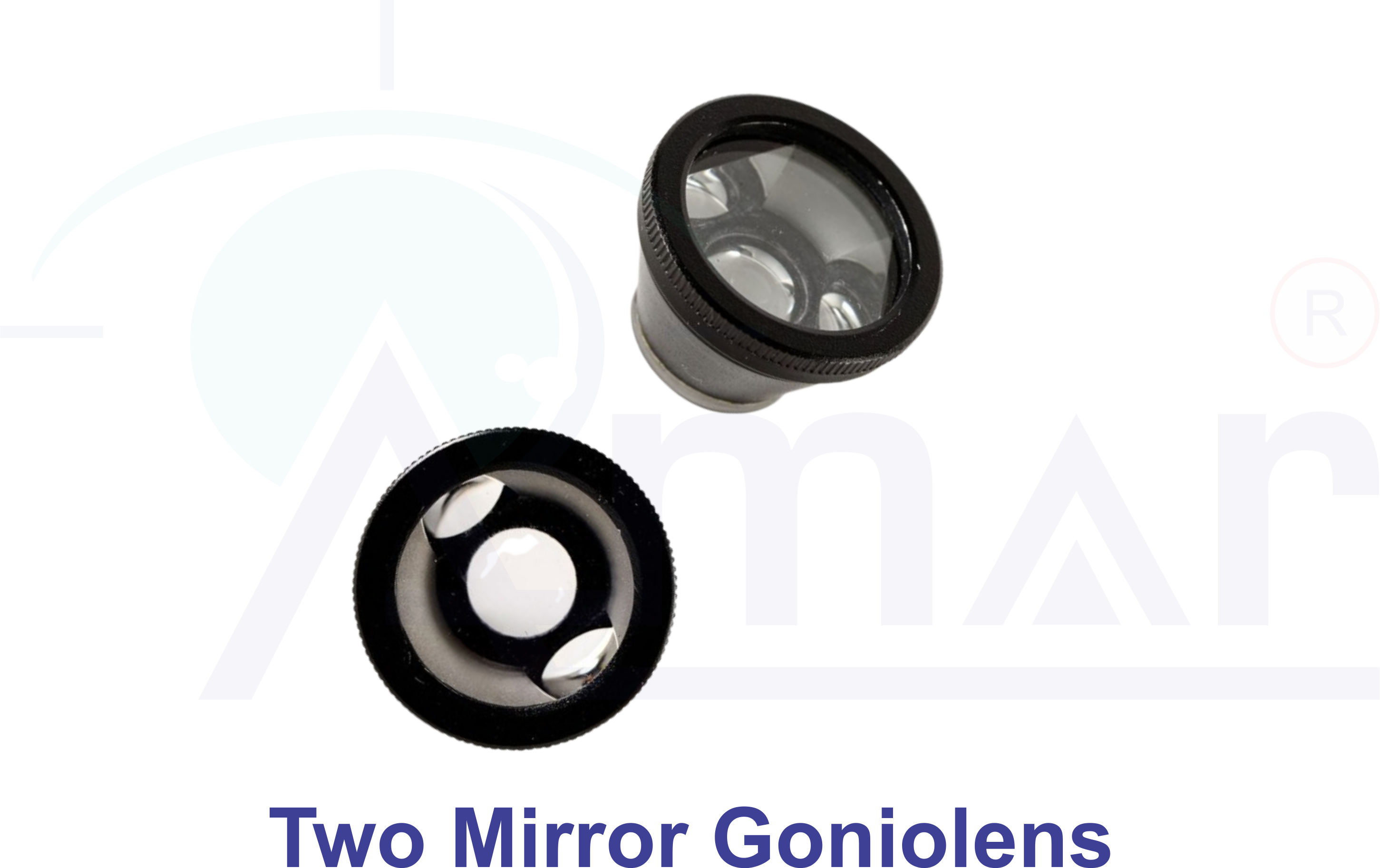

Two Mirror Goniolens
Used to view the anterior chamber angle and central retina. Convenient in handling. Two Opposite Mirror angle dat62°. While rotatingonly90°,it makes clear view of anterior chamber angle. Very useful in diagnostics. Made in glass,Contact medium required. .
| REF | Description | Mirror angle | Qty.per Pack |
|---|---|---|---|
| AI/DL/02 | TWO MIRROR GONIOLENS | 62°/62° | 1Nos. |

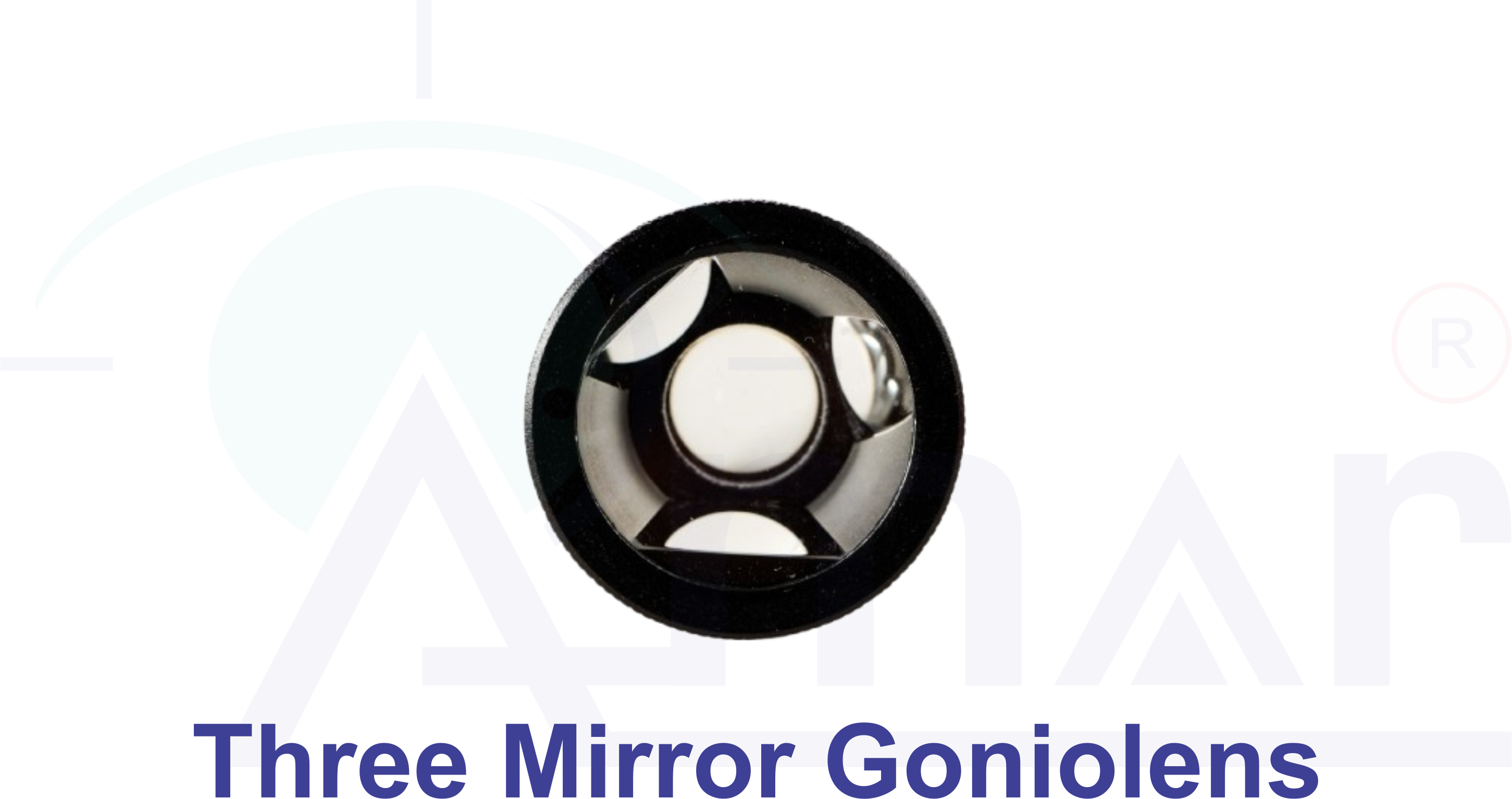

Three Mirror Goniolens
Used to view the anterior chamber angle and peripheral retina. Three Mirrors angle dat59°,66°,73° with 120° intervals. Very useful in diagnostics.Made in glass,Contact medium required. .
| REF | Description | Mirror angle | Qty.per Pack |
|---|---|---|---|
| AI/DL/03 | THREE MIRROR GONIOLENS | 59°,66°,73° | 1Nos. |

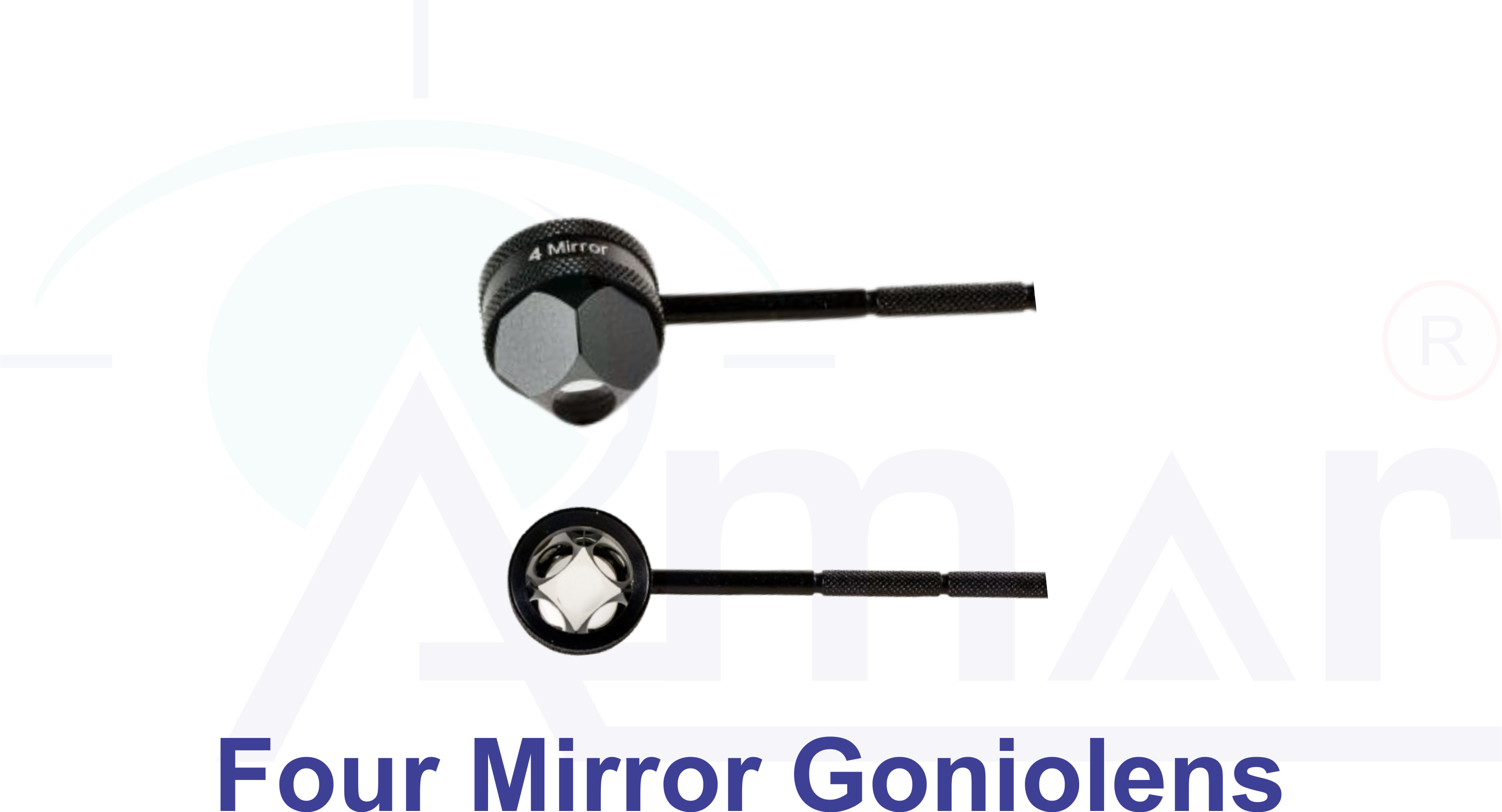

Four Mirror Goniolens
Used for static and dynamic gonios copy. Four Mirrors angled at 62°, Small contact surface of 9mm diameter. Unique detachable handle.Very useful in diagnostics.Made in glass.Coupling Fluid not required.No Contact medium required .
| REF | Description | Mirror angle | Qty.per Pack |
|---|---|---|---|
| AI/DL/04 | FOUR MIRROR GONIOLENS | 62° | 1Nos. |

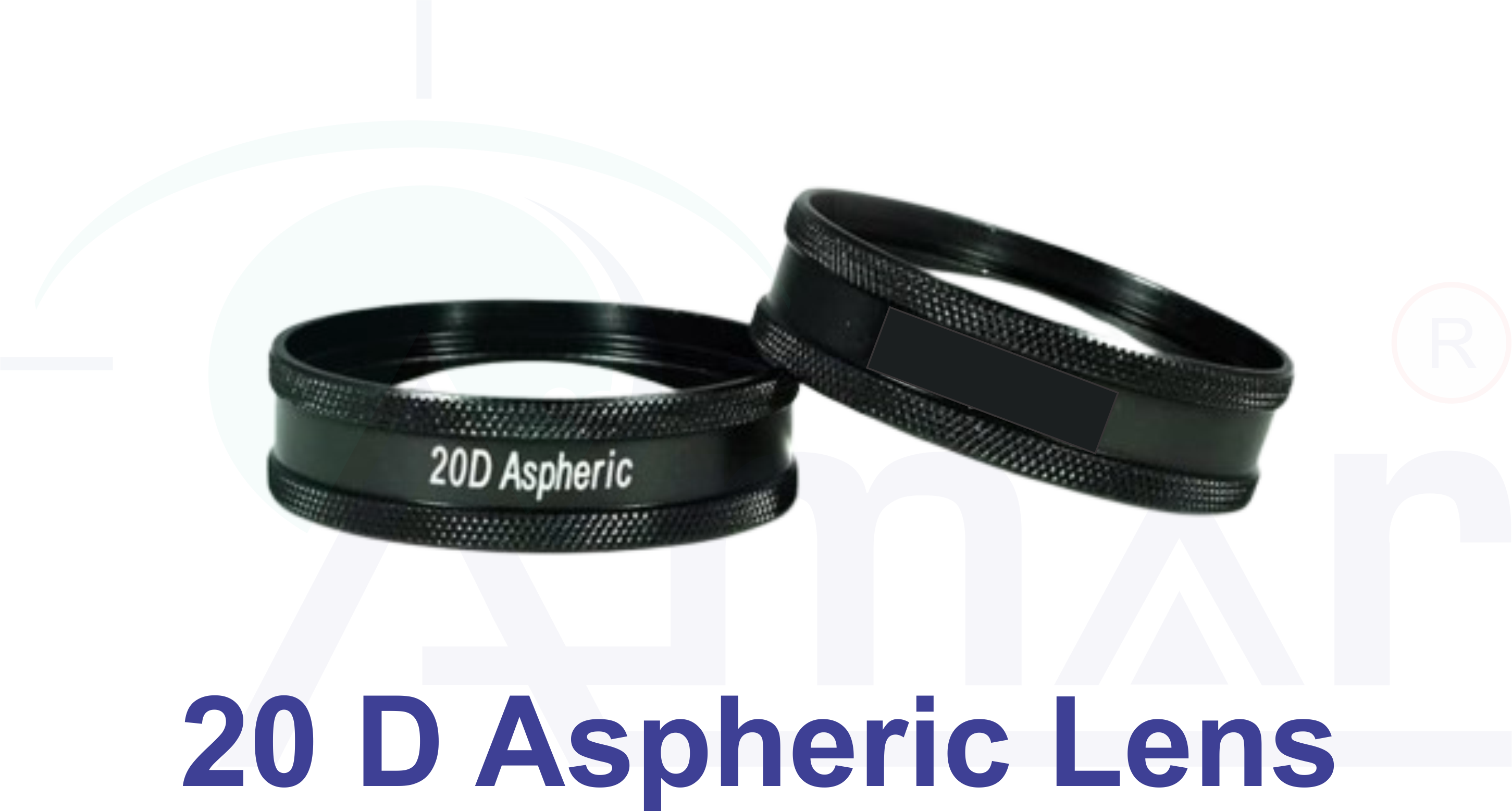

20D Aspheric Lens
Used for general examination of the fundus. Provide shighre solution image of the retina. Field of view 50°. Working distance of 50mm,very easy for the user. Aspheric optics, Made in glass.
| REF | Description | Field Of View | Qty.per Pack |
|---|---|---|---|
| AI/DL/20 | 20D Aspheric Lens | 50° | 1Nos. |

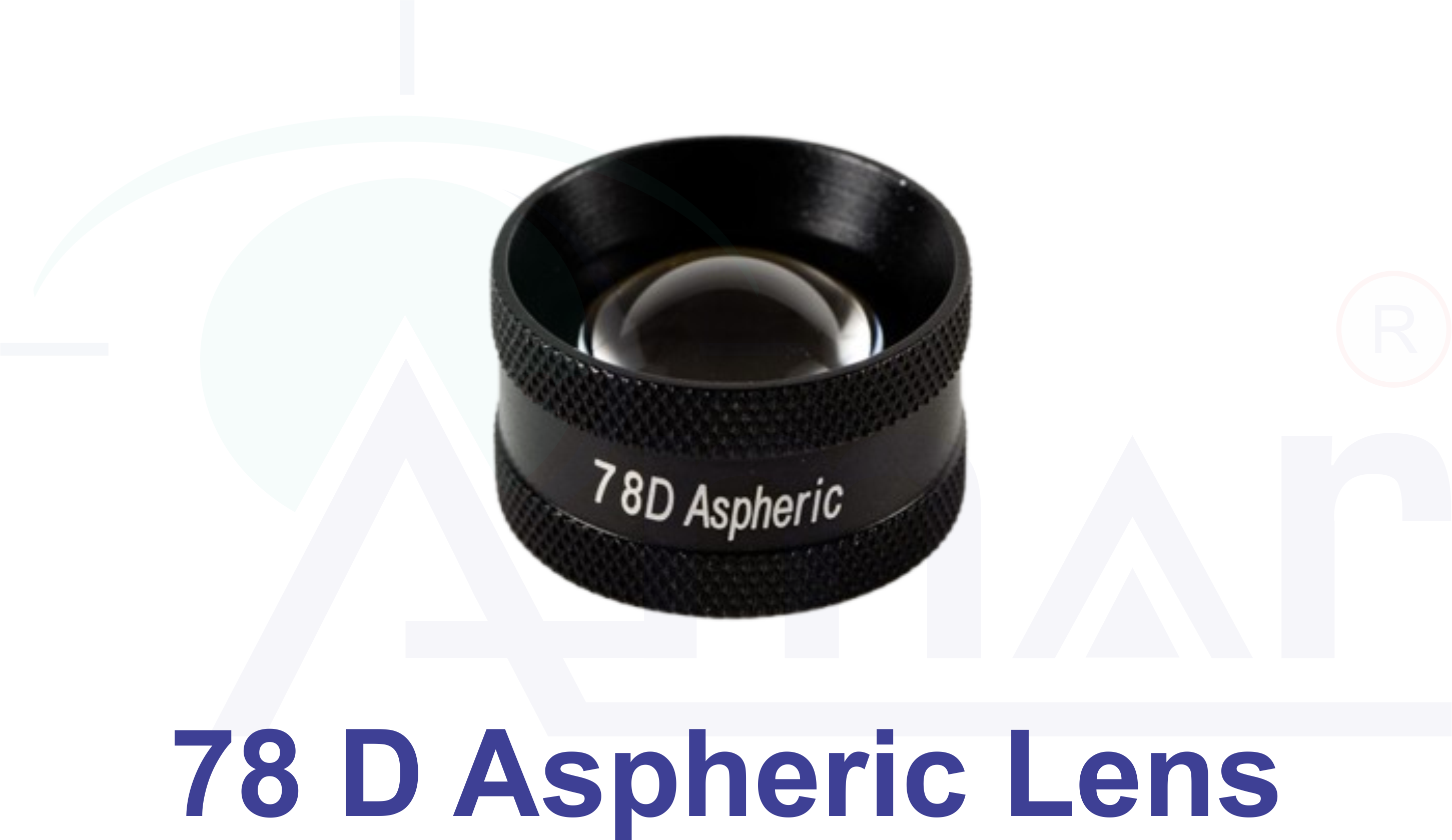

78D Aspheric Lens
Used with slit lamp for general examination of the fundus. Provides extended working distance from the cornea. Ideal combination magnification and field of view. Aspheric optics, Made in glass.
| REF | Description | Field Of View | Qty.per Pack |
|---|---|---|---|
| AI/DL/78 | 78D Aspheric Lens | 84° | 1Nos. |

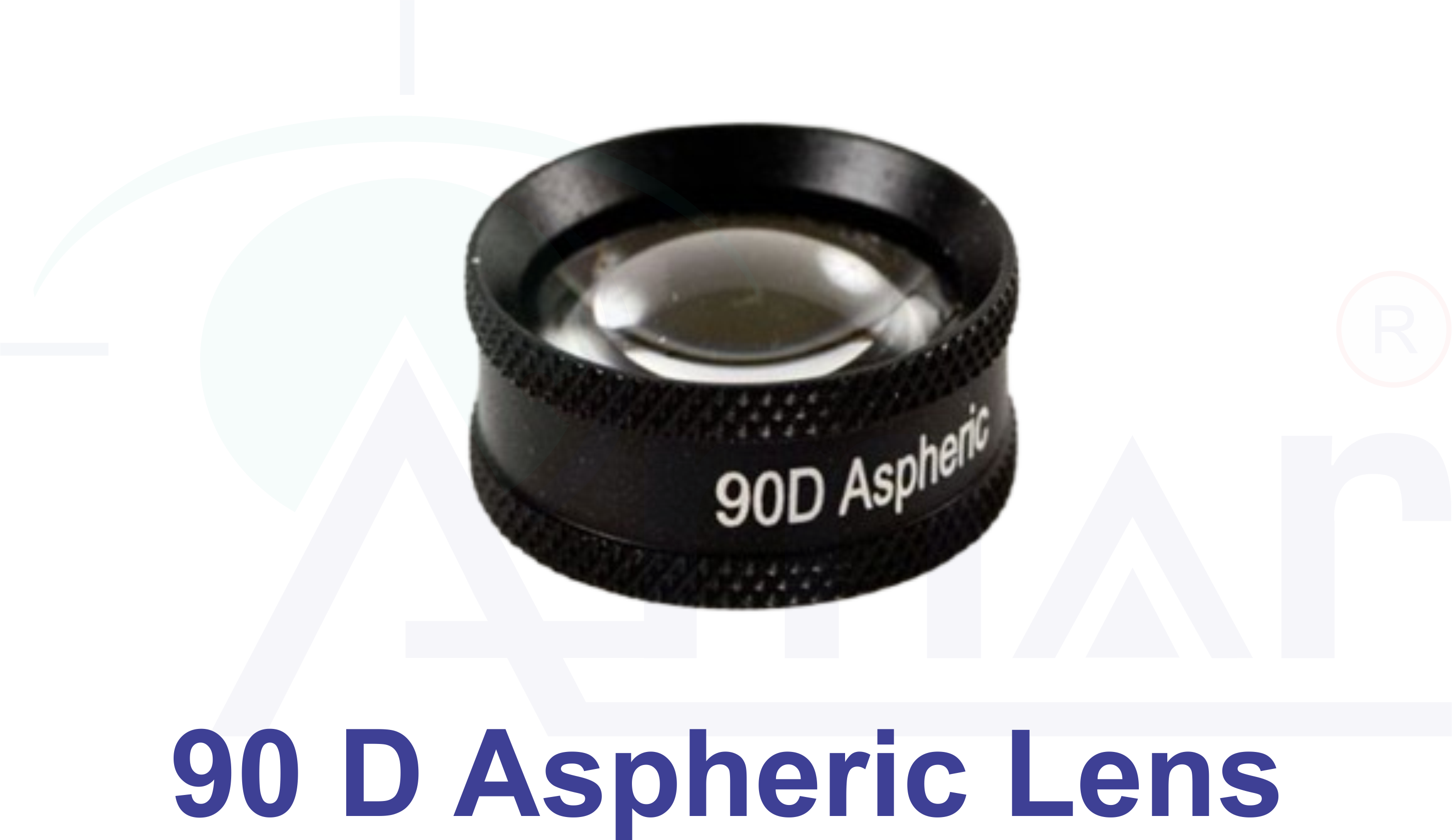

90D Aspheric Lens
Used with slit lamp for general examination of the fundus Also used for small Pupil Examination. Has most popular power for non-contact fundus examination. Ideal for posterior pole scanning High magnification with increased illuminated field area Aspheric optics, Made in glass.
| REF | Description | Field Of View | Qty.per Pack |
|---|---|---|---|
| AI/DL/90 | 90D Aspheric Lens | 94° | 1Nos. |
